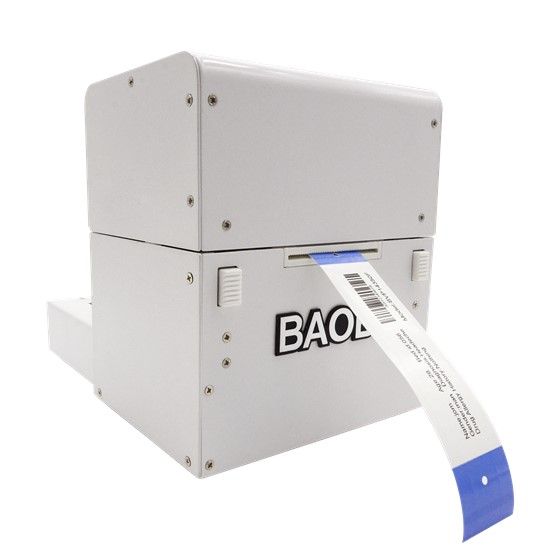

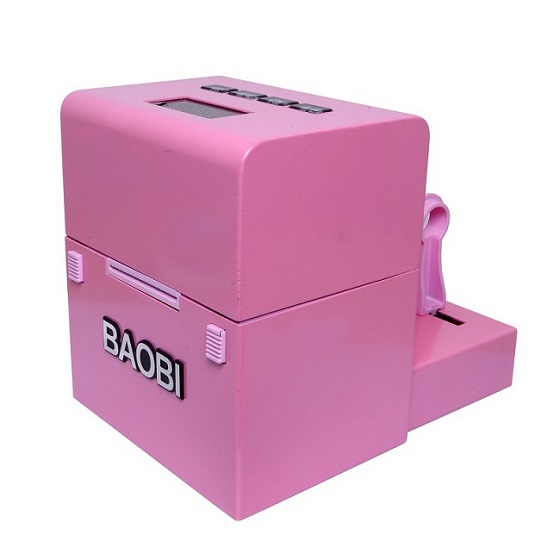

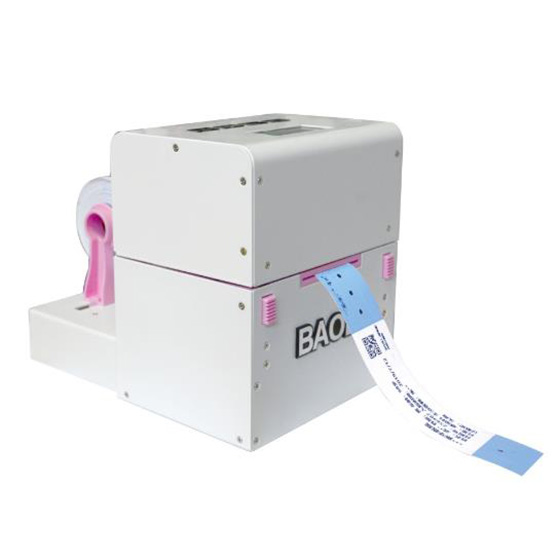

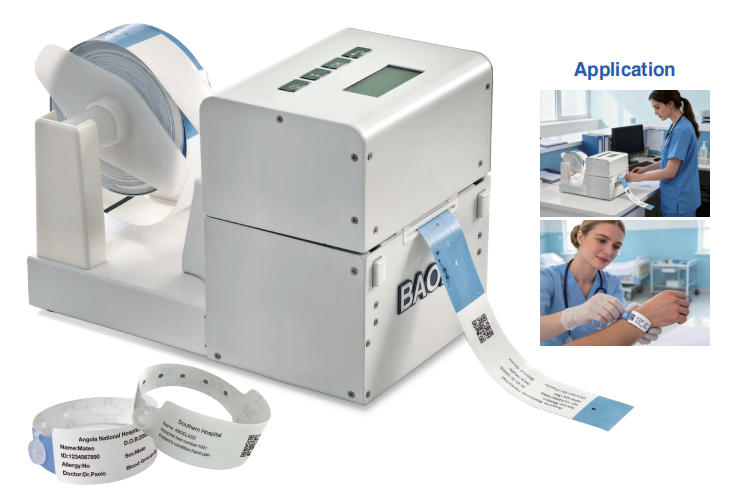

BAOBIWANXIANG Wristband Printer BB720A

SPECIFICATION PARAMETER

* The printer specifications described based on printer testing are using the our own wristbands ,for the user's reference only.Test results depend on the actual application settings or the use of other kind consumables. BAOBIWANXIANG has always advocated testing to verify the application.

I. Standard Features:

Printing mode: Thermal printing,Thermal transfer printing

Three setting modes: Print and Write RFID,Print Only, Write RFID only

Fast and easy ribbon loading design

Simple and convenient for label replacement

Equipped with LCD screen, show the print statusand print quantity in real time.

Support text printing in different languages

Printing path with open buttons makes it easier to fix paper jam.

Standard paper tearing mode

Unique energy control of printer head

II. Printer specifications

Printer Resolution:203dpi / 8 dots per mm

Print width:Maximum 2"/ 54mm

Applicable to different styles of Baobi thermal

wristband and Baobi thermal transfer wristband

Printing speed:Print speed is selectable.

Standard speed: 2.5 "/ s (60 mm / sec)(5 seconds per wristband)

Maximum speed: 5 ips (120mm/s)

III. Medium Characteristics

Maximum Wristband/Label Width:0.39"/10 mm to 2" / 54 mm

Maximum medium roll size:5 ”/ 127 mm (external diameter)

Medium thickness:0.003" / 0.08 mm to 0.0075" / 0.19 mm

Medium type:Thermal/Thermal transfer medium

Applicable ribbon specifications

Shaft core: 0.5 ”

Shaft length: 56mm

Ribbon width: within 54mm

Ribbon roll external diameter:

36mm or less (ribbon length 90m)

IV. Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts) External

Power Supply

Physical specification

Width: 148 mm

Height: 175 mm

Length: 203 mm

Weight(N.W): 2.5kg

V. Working parameters

Software

* BAOBI Printer Driver

*BAOBI BBDesigner

programming

* BPL+ (BAOBI Printer Interface File)

Networking / Connectivity

* USB 2.0

* Wireless 802.11 b/g/n (Optional)

Fond and Graphics

* Support user-defined fonts and graphics, including custom logo Font and Barcode rotation:90,180,270 degrees

Barcode

* 1D barcode:

Code 39, Code 128A, B&C, UCC/EAN-128,Code 93, Codabar, Interleaved 2 of 5, UPC-A,UPC-E, UPC-A with 2 and 5 add on, UPC-E

With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar(formerly RSS), Code 11, China Post

* 2D barcode:

PDF-417, Maxicode, DataMatrix, QR code, Aztec

VI. Accessories

* Warranty Card

* USB

* Port Cable

* Power Adaptor

* Power Cord
