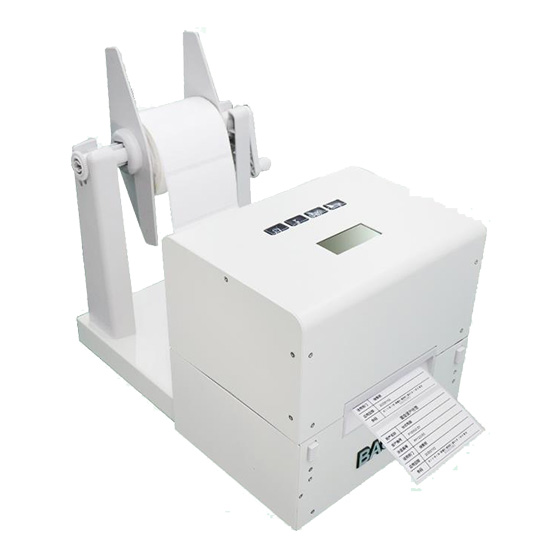

Standard Features

* Print mode:direct thermal printing , thermal transfer printing

* Three setting modes: print and write RFID, print only, write RFID only

* Precise positioning, can operate the printing and RFID writing on Label with minimun antenna gap of 3mm

* Fast and easy ribbon loading design

* Simple and convenient for label replacement

* Equipped with LCD screen, show the print status and print quantity in real time.

* Printing channel can be easily opened, quickly clearing paper jams, etc.

* Special removable sensor positioning control, flexible consumable compatibility

* Unique energy control of printer head

Printer Specifications

Printer Resolution

203dpi / 8 dots per mm

Print Width

Maximum 4" / 108mm

Print Speed

Print speed is selectable.

Standard Speed: 2.5 " / s (60mm / sec)

Medium Characteristics

Maximum Width

4" / 108mm

Medium Thickness

0.25 mm to 2.0mm

Medium Type

Thermal / Thermal Transfer Medium /

Flexible Anti-metal tag

Label Interval

Minimum space of 3mm

Maximum Label Roll Size:

13" / 350mm (external diameter)

Medium Type:

Black mark or transparent or continuous label

Applicable Ribbon Specifications

Shaft core: 1.0"

Shaft length: 110mm

Ribbon width: within 110mm

Ribbon length: within 300m

Ribbon Roll External Diameter: within 65mm (ribbon length 300m)

RFID Technical Parameters

Frequency Protocol

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Support Chip

Supports chips compatible with the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3,Monza 4D, Monza 4E, Monza 4QT,Monza 5, Monza R6, Monza R6-P,Monza R6-A,Monza S6-C, UCODE G2iL,UCODE G2iM, UCODE 7, UCODE 7m,UCODE 7xm,UCODE 7xm+, UCODE 8,UCODE 8m, UCODE DNA, Alien Higgs 3,Alien Higgs 4, Alien Higgs-EC (H5), etc.

Working Frequency

920MHz-925MHz (other frequencies are optional before leaving the factory)

Work Status Indication

Displayed in the screen

Antenna

Build-in

Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts)

External Power Supply

Physical specification

*Width: 220mm

* Height: 248mm

* Length:333mm

* Weight(N.W): 4.5kg

Working Parameters

Software

*BAOBI Printer Driver

*BBDesigner

Programming

*BPL+ (BAOBI printer interface file)

Networking / Connectivity

*USB2.0

*RS-232C serial interface

*Ethernet 10/100 interface (RJ45)

*Wireless 802.11 b/g (* optional)

Fond and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation:90,180,270 degrees

Barcode

*1D barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5,UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on,Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar (formerly RSS), Code 11, China Post

*2D barcode: PDF-417, Maxicode, DataMatrix,QR code, Aztec

Accessories

Warranty Card

USB Port Cable

Power Adaptor

Power Cord
