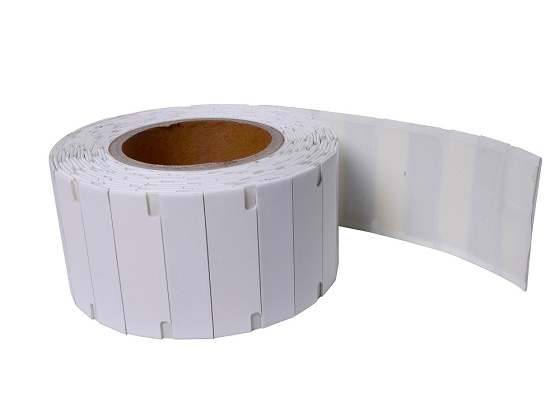

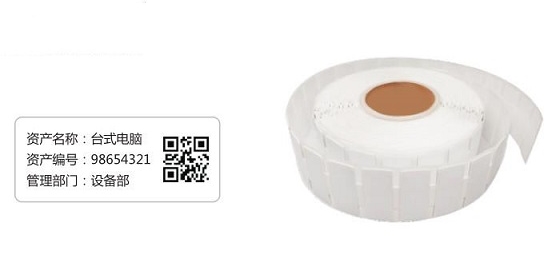

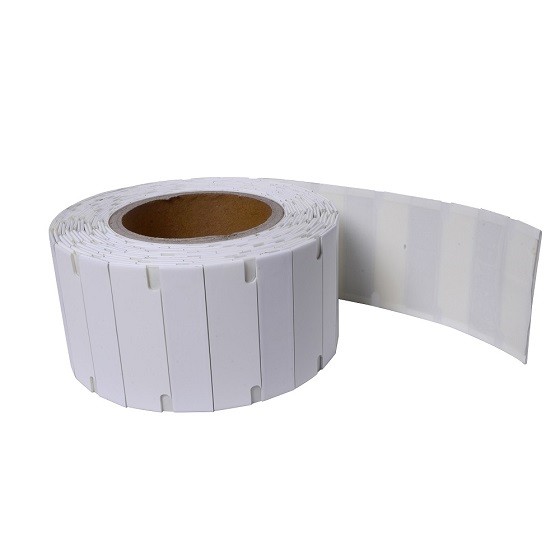

RFID Anti-Metal Label BLA1100

RFID Anti-Metal Label BLA1100 is a high-performance passive electronic label support ISO18000-6C (EPCglobalC1G2) standard,suitable to use in metal and liquid environments. It is flexible and printable,can print barcode, text, graphics, and support to stick on pipes, metal containers and fixed assets.

RFID Anti-Metal Label BLA1100 covers the frequency range of 840MHz to 960MHz. The chip contains an automatic tuning ability possess excellent environmental adaptability.(tuning ability makes the performance of the tag more stable in common environments) .

RFID Anti-Metal Label BLA1100 has high efficiency of reading and writing performance, and contains anti-collision ability. It is widely used in product identification, asset tracking, anti-counterfeiting of valuables, medical asset management,which help to improve operation efficiency and inventory management for manufacturers and retailers.

I. characteristics

Very strong metal resistance

Very resistant to chemicals

High temperature resistance, stable performance

Good reading performance can be obtained by sticking on metal

II.Application

Mold management, asset management, logistics management, inventory management, production line management, auto parts process management, product tracking of all kinds of electric household equipment, inspection of electric power industry, application of iron and steel industry, etc.

III.Specification

BLA1102-6025-UHF13-07-12025

Packing Information：

Packing : 500pcs/roll, 3"shaft core

Rolling Direction: Chip down

Note: Do not violently knock out or bend the chip

Product Specification

Protocols: EPC Class 1 Gen 2 (ISO 18000-6C) passive UHF RFID label

Work Frequency: 905-925MHz (USA Frequency) / 865-868 MHz (ETSI) / *Working Frequency is optional before leaving factory

Chip Type: Impinj Monza R6-P / Memory32-bit user memory / 48-bit serialization TID / 128-bits EPC

Application Temperature: -40°F to +185°F (-40°C to + 85°C)

Working Temperature: -40°F to +185°F (-40°C to + 85°C)

Weight(Roll): 0.56 kg (500 pcs)

Size(mm): 60(+/-1) x 25(+/-0.8) x 1.26(+/-0.1)

Width: 63(+/-1)mm

Label: 30.5(+/-0.8)mm

Blank space ruler between labels: 25(+/-0.1)mm

R Angle Size: 1.5(+/-0.2)mm

Printing Performance: Excellent

Reading Distance on Metal Surface: 8m

Reading Distance on Plastic Surface: 3.5m

Reading Distance on Liquid Surface: 9m

Surface Material: White PET

Standard Color: White

Backing Material: Strong backing adhesive

Standard Packing: 500pcs/Roll

Diameter of the inner core: 3 in (76.2 mm)

Diameter of the external core: 8 in (203 mm)

Reading and Writing Lifetime: 10 0000 times

Chip Lifetime: ≥10Yeas

Sensitivity: -14dbm

Characteristic

Working Environment: -20℃ to 70℃

Working Humidity: 20% to 80%

Storage Environment: -5℃ to 40℃

Data Validity Period: 100 000 times, data can be stored for 50 years

Product Shelf Life: Can be stored for one year under 5 ℃ to 40 ℃, in shade and not sealed condition

BLA1103-8025-UHF13-07-16025

Packing Information：

Packing : 500pcs/roll, 3"shaft core

Rolling Direction: Chip down

Note: Do not violently knock out or bend the chip

Product Specification

Protocols: EPC Class 1 Gen 2 (ISO 18000-6C) passive UHF RFID label

Work Frequency: 905-925MHz (USA Frequency) / 865-868 MHz (ETSI) / *Working Frequency is optional before leaving factory

Chip Type: Impinj Monza R6-P

Memory 32-bit user memory / 48-bit serialization TID / 128-bits EPC

Application Temperature: -40°F to +185°F (-40°C to + 85°C)

Working Temperature: -40°F to +185°F (-40°C to + 85°C)

Weight(Roll): 0.71 kg (500 pcs)

Size(mm): 80(+/- 1) x 25(+/- 0.8) x 1.26(+/- 0.1)

Width: 83(+/- 1)mm

Label: 30(+/- 0.8)mm

Blank space ruler between labels: 25(+/- 0.1)mm

R Angle Size: 1.5(+/- 0.2)mm

Printing Performance : Excellent

Reading Distance on Metal Surface: 12m

Reading Distance on Plastic Surface: 6m

Reading Distance on Liquid Surface: 5m

Surface Material: White PET

Standard Color: White

Backing Material: Strong backing adhesive

Standard Packing: 500pcs/Roll

Diameter of the inner core: 3 in (76.2 mm)

Diameter of the external core: 8 in (203 mm)

Reading and Writing Lifetime: 10 0000 times

Chip Lifetime: ≥10Yeas

Sensitivity: -14dbm

Characteristic

Working Environment: -40℃ to 85℃

Working Humidity: 20% to 80%

Storage Environment: -5℃ to 40℃

Data Validity Period: 100 000 times, data can be stored for 50 years

Product Shelf Life: Can be stored for one year under 5 ℃ to 40 ℃, in shade and not sealed condition

BLA1101-7018-UHF13-03-14416

Packing Information

Surface Material: Matt-White PP

Label Size:70*18*1.5mm

Packing : 300pcs/roll, 3" shaft core

300pcs/box, size:190*190*77mm

3000pcs/ctn, size:410*210*415mm

Rolling Direction: Chip down

Note: Do not violently knock out or bend the chip

Characteristic:

Chip MonzaR6-P

Work Frequency 840MHz-960MHz

Protocols ISO/IEC 18000-6C

Capacity User Memory 64bits

Memory Readable / Writable

Reading and Writing Lifetime 10 0000 times

Chip Lifetime ≥10Yeas

Working Environment -20℃ to 70℃

Working Humidity 20% to 80%

Storage Environment -5℃ to 40℃

Data Validity Period 100 000 times, data can be stored for 50 years

Product Shelf Life Can be stored for one year under 5 ℃ to 40 ℃, in shade and not sealed condition
