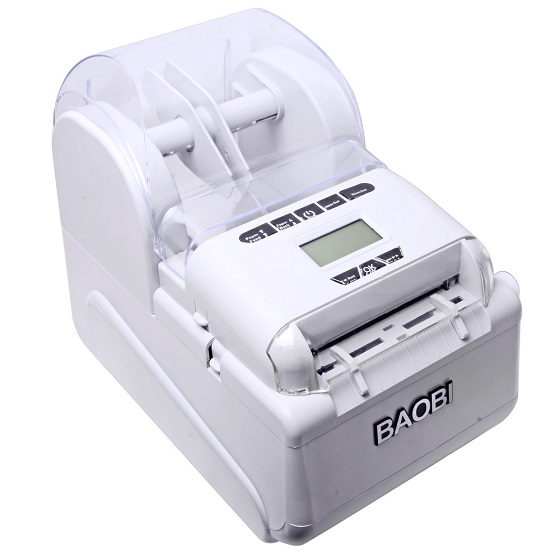

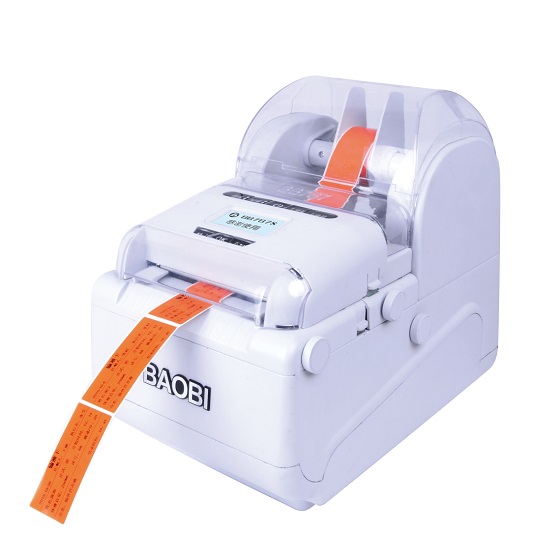

Barcode Label Printer BB787S
- Product details
- Specification Parameters
- Product News
- Download
Two Rolls Loading for labels & wristbands:
Choose Upper Roll for label or wristband
Choose Down Roll for label or wristband
One Roll for label ,another Roll for wristband
Or Two Rolls for labels
Or Two Rolls for wristbands
Select Upper Roll Printing or Down Roll Printing with DRIVER setting
Or Select Upper Roll Printing or Down Roll Printing by switching Keyboard Buttons
BB787S FEATURES & FUNCTION
Direct thermal printing with maximum width of 108mm. 300dpi resolution enables it to print all sorts of one-dimensional barcodes, 2D barcodes and various graphics with high precision.
Two Rolls loading for labels or wristbands with easy switch button for any selection. Patented design of printing path with open buttons makes it easier to fix paper jam.
Open printer body design supports labels or wristbands loading without limitation of roll size. Clear cover available for anti dust and paper delivering observation.
BB787S APPLICATION
Heath Care
*Sample Tracking / Drug Management / Infusion Management / Patient Identification
Service & Leisure
*Water Park / Amusement Park / Concert / Cruise / Hotel / School Tickets Or Wristbands Printing
Retail
*Assets Management / Sales & Storage Management / Commodity Label Printing
Manafacturing / Logistics / Warehouse
*Cargo Tracking / Component Label Printing
Company
*Attendance Management / File Consolidation / Access Control
Barcode Label Printer BB787S SPECIFICATION PARAMETER
FEATURES
Thermal printing
Two Rolls design, easy to switch printing material
More easier and faster to set
Equipped with multiple languages
With LCD, real-time display printing status and quantities.
Label printing software supports the printing of different language texts
Standard tear paper mode
Unique energy control of printer head
PRINTER SPECIFICATIONS
Resolution
300 dpi / 12 dots per mm
Print Width
Maximum: 4.25” / 108mm
Minimum: 0.39” / 10mm
Print Speed
Selectable
Standard Speed: 2.5” / 60mm per second
Maximum Speed: 5 ips / per second
Two Rolls
Upper Roll / Down Roll, selectable.
OPERATING CHARACTERISTICS
Environmental
Operating temperature: 40℉/4.4℃ to 104℉/40℃
Storage temperature: -40℉/-40℃ to 140 ℉/80℃
Operating humidity: 20%-85% non-condensing
Storage humidity: 5%-85% non-condensing
Electrical
Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply
Physical Characteristics
Width: 225mm
Height: 306mm
Depth: 345mm
Weight (N.W): 3.11kg
BAOBI PRINTABLE ID SOLUTION
Software
BAOBI Printer Driver
BBDesigner
Programming
BPL+ (Application Programming Interface)
Networking /Connectivity
USB 2.0 interface
Ethernet 10/100 interface
Wireless 802.11 b/g/n (Optional)
Font and Graphic
Support user-defined fonts and graphics-including customized logo
Font and Barcode rotation: 90, 180, 270 degrees
Barcode
Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.
2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.
Accessories
Software CD Disk (BBDesigner / BAOBI Printer Driver)
Warranty Card
USB Port Cable
Power Adapter
Power Cord
BAOBI Label Holder WH01 (Optional)
-
BAOBIWANXIANG
Leading provider of the Internet of Things industry in China,providing personnel and items identification technology, products and total solutions.It’s a high-tech enterprise integrating R&D, production, sales and technical services.Totally obtain 217 patents.
-
