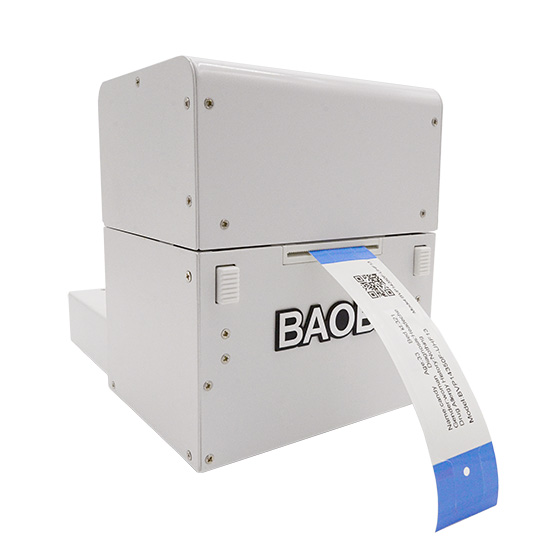

RFID Wristband Printer BB720A UHF SPECIFICATION PARAMETER

* The printer specifications described based on printer testing are using the our own wristbands ,for the user's reference only.Test results depend on the actual application settings or the use of other kind consumables. BAOBIWANXIANG has always advocated testing to verify the application.

I. Standard Features
* Printing mode: Thermal printing,Thermal transfer printing
* Three setting modes: Print and Write RFID, Print Only, Write RFID only

* Fast and easy ribbon loading design

* Simple and convenient for label replacement

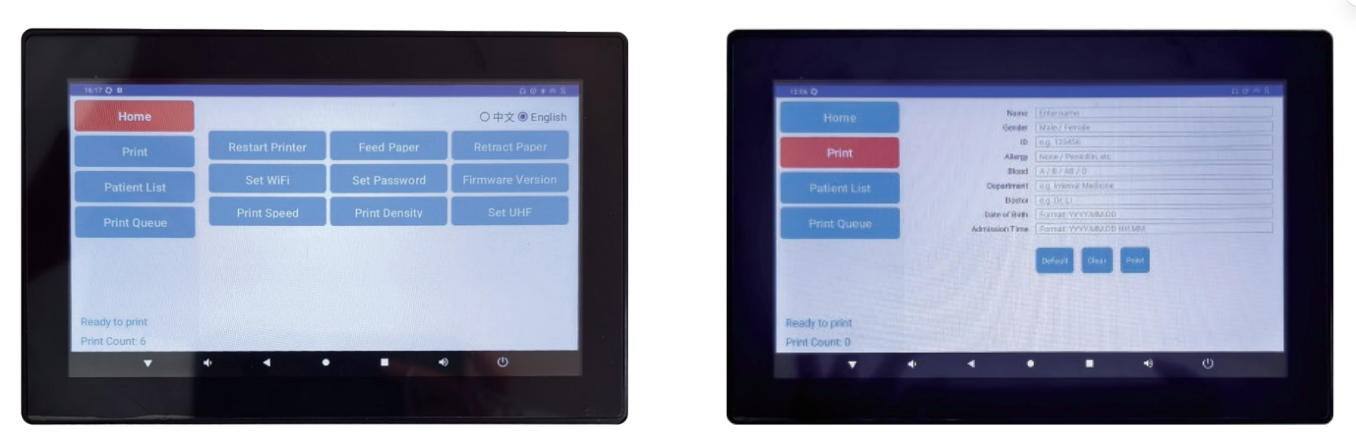

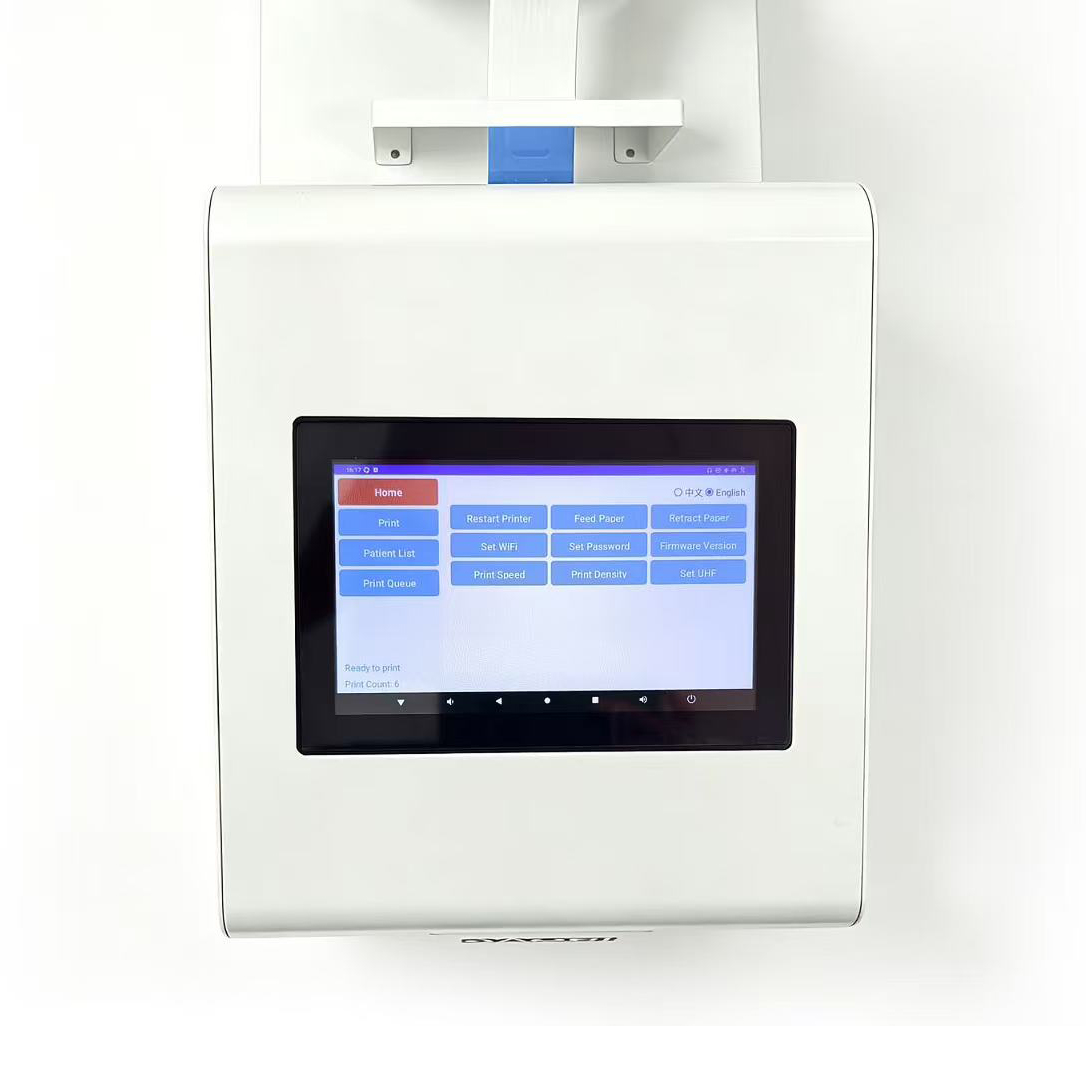

* Equipped with LCD screen, show the print status and print quantity in real time.

* Printing path with open buttons makes it easier to fix paper jam.

* Standard paper tearing mode

* Unique energy control of printer head

II. Printer Specifications
Printing Resolution:203dpi/8 dots per mm
Print width:Maximum 2” / 54mm

Applicable to different styles of Baobi thermal wristband and Baobi thermal transfer wristband

Printing speed:Print speed is selectable.

Standard speed: 2.5 ”/ s (60 mm / sec)(5 seconds per wristband)

Maximum speed: 5 ips (120mm/s)

III. Medium Characteristics

Maximum Wristband/Label Width: 0.39"/10 mm to 2" / 54 mm

Maximum medium roll size:5 ”/ 127 mm (external diameter)

Medium thickness:0.003" / 0.08 mm to 0.0075" / 0.19 mm

Medium type:Thermal/Thermal Transfer

Applicable ribbon specifications

Shaft core: 0.5 ”

Shaft length: 56mm

Ribbon width: within 54mm

Ribbon roll external diameter: 36mm or less

(ribbon length 90m)

IV. RFID technical parameters

Radio frequency protocol

EPC Global UHF Class 1 Gen 2/ISO 18000-6C

Supports chips

compatible with the EPC Global UHF

Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3, Monza 4D, Monza 4E, Monza 4QT, Monza 5,Monza R6, Monza R6-P, Monza R6-A,Monza S6-C,UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m,UCODE 7xm,UCODE 7xm+, UCODE 8, UCODE 8m,UCODE DNA, Alien Higgs 3, Alien Higgs 4, Alien Higgs-EC (H5), etc.

Working frequency：920MHz-928MHz

865MHz-868MHz(Optional)

Work status indication

Display

Antenna

Built in

V. Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts) External

Power Supply

Physical specification

* Width: 148 mm

* Height: 175 mm

* Length: 203 mm

* Weight(N.W): 2.5kg

VI. Working Parameters

Software

* BAOBI Printer Driver

* BBDesigner

programming

* BPL+ (BAOBIWANXIANG Printer Interface File)

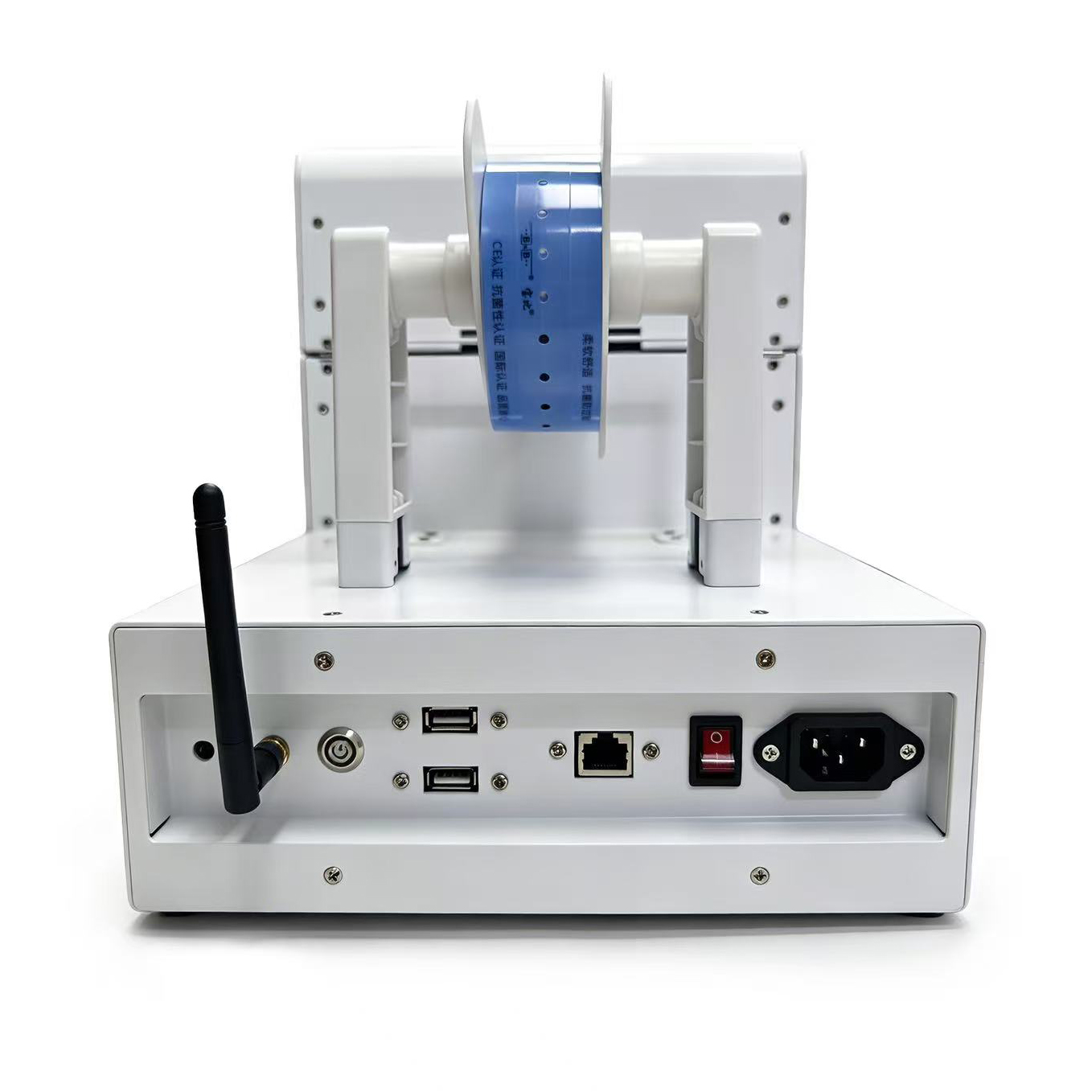

Networking / Connectivity

* USB2.0

* Serial port RS232

* Wireless802.11b/g/n(Optional)

Font/Graphics

* Support user-defined fonts and graphics, including custom logo Font and Barcode rotation:90,180,270 degrees.

Barcode

1D barcode:

Code 39, Code 128A, B&C, UCC/EAN-128,Code 93, Codabar, Interleaved 2 of 5, UPC-A,UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on,Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar(formerly RSS), Code 11, China Post

2D barcode:

PDF-417, Maxicode, DataMatrix, QR code, Aztec

VII.Accessories

* Warranty Card

* USB Port Cable

* Power Adaptor

* Power Cord
