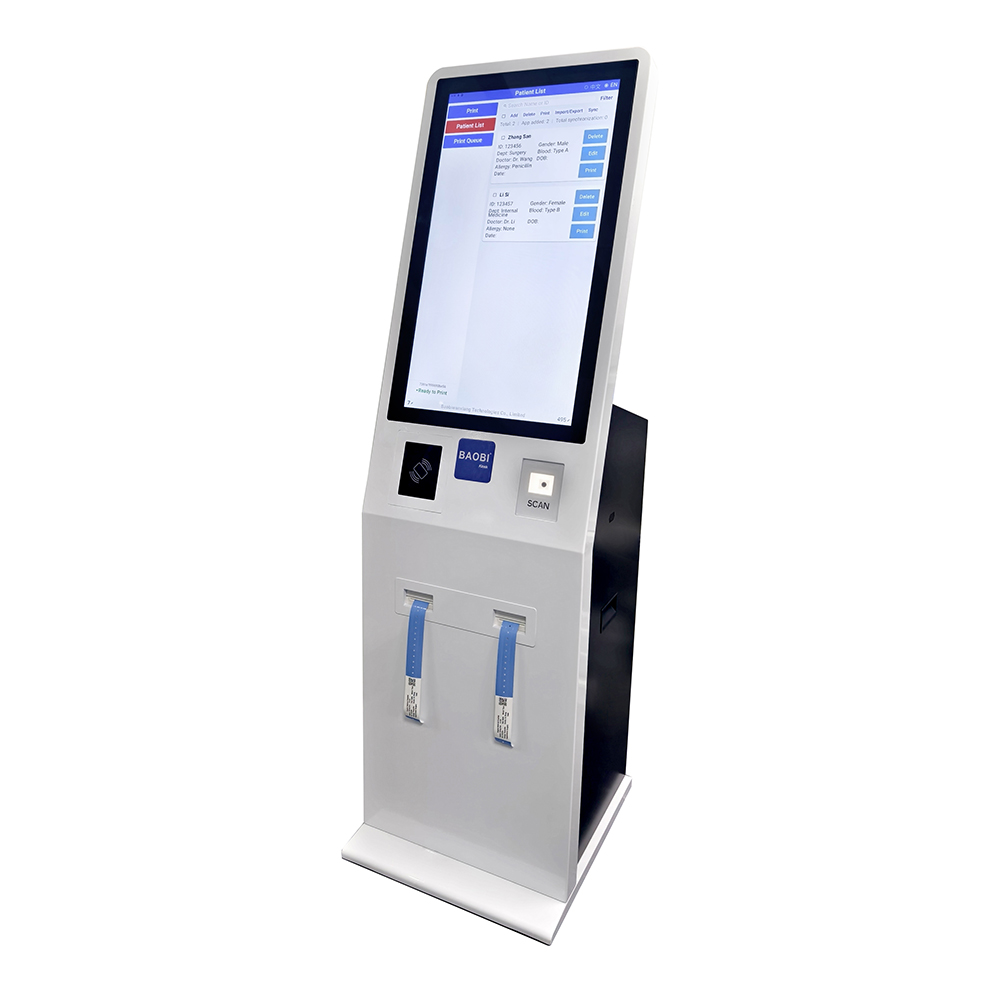

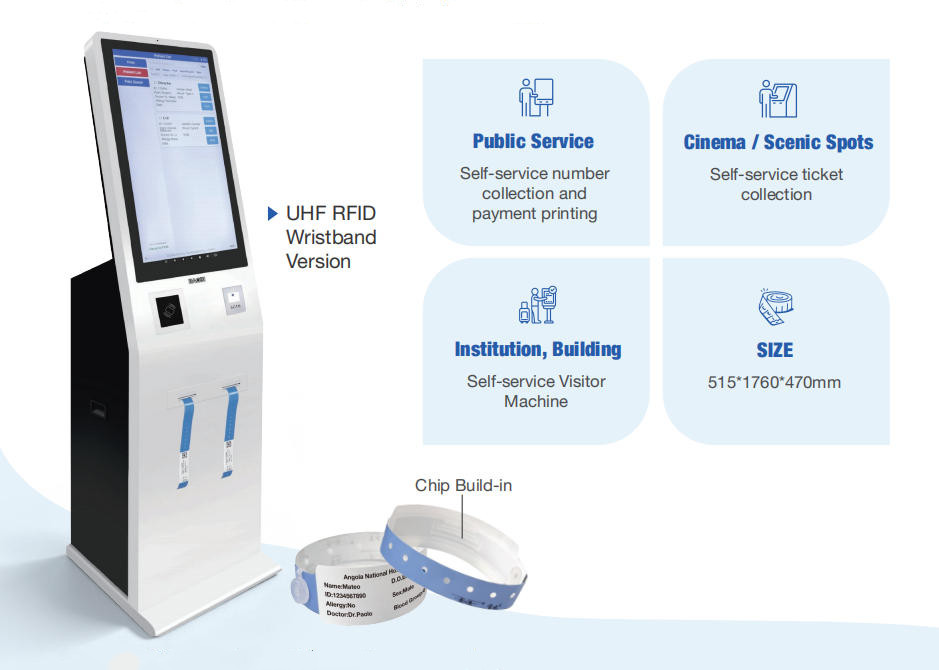

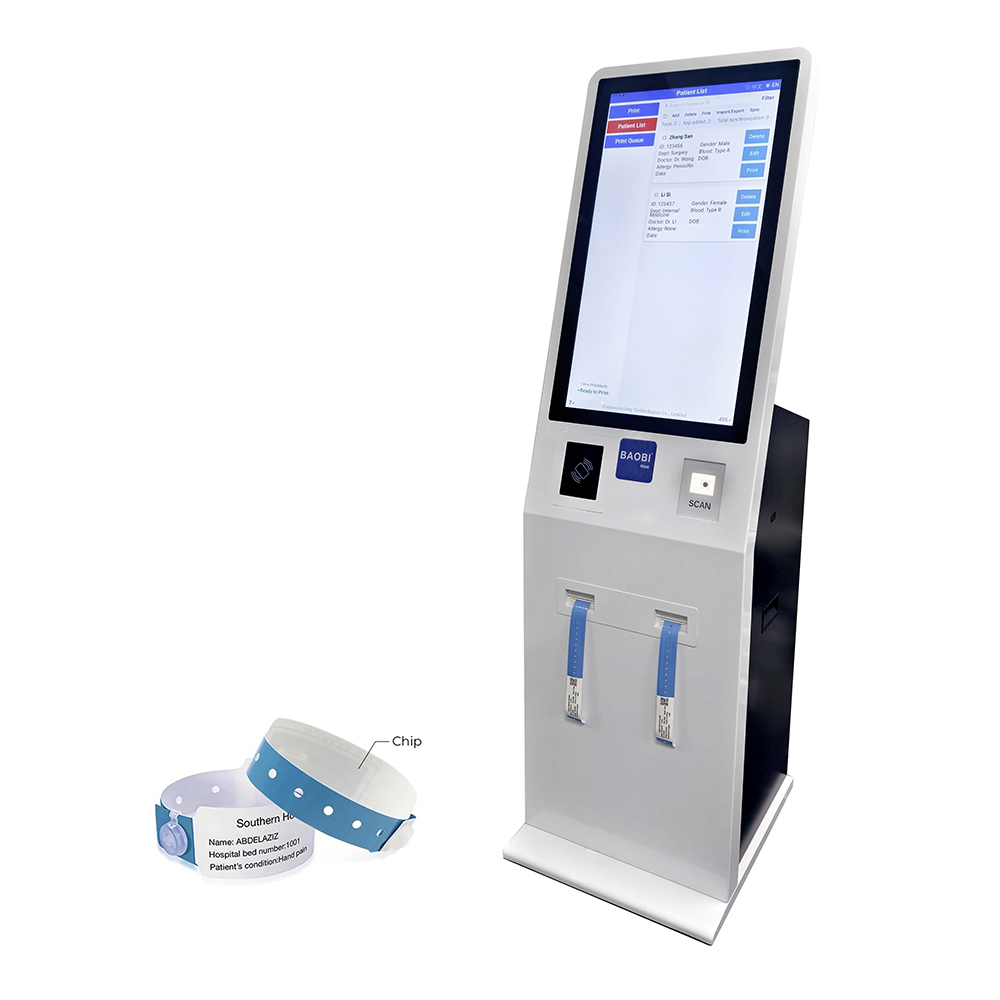

BAOBI Wristband Printer Terminal BV8210 UHF
- Product details
- Specification Parameters
- Product News
- Download
BAOBI Wristband Printer Terminal BV8210 UHF combines computer technology, network technology, communication technology, and intelligent automation technology. Customer can choose freely and easily purchase tickets in a friendly and easy operation interface through ticketing system.It provides an unattended self-service service that requires no human involvement , break the old work operation mode, which is suitable for fast and efficient business travel activities.
Extremely streamlined body design, 32"HD large screen resist glare;
large color blocks interface, beautiful and striking;
Sheet metal appearance paint, tempered safety glass surface in touch area, scratch-proof, dust-proof, explosion-proof;
Built-in speaker, effectively improving self-service operation efficiency;
Support intelligent connection, easy to operate and meet the needs of various self-service situation;
Supports various applications such as printing, barcode scanning, barcode-scanning payment, barcode scanning for number collection and barcode scanning for ticket collection and other application.
BAOBI Wristband Printing Terminal BV8210 UHF Specification
Screen
32 Inch LCD Display
Display Screen: 698.4 × 392.85 mm
Screen Resolution: 1920 * 1080
Angle of View: Full angle 89/89/89/89
Brightness:400cd / m²
Color: 16.7m
Contrast: 1300: 1
Response Time: about 8ms
Back Light Lifetime: 50000-60000h
nput Power: AC110-240V, 50-60HZ
Power: 56W(32")
Weight(NW): KG(32")
Packing and Size: Honeycomb box
Touch Panel
10 point capacitive touch screen;
Scratch resistant glass, 3cm tempered glass, 99% accuracy, less than 2 ounces of force induction, less than 3ms;
quick response.
Motherboard and Memory
Android RK3288, cotex-a17 quad-core, main frequency
1.8GHZ, operating system Android 5.1
2G Memory, 8G Storage (expandable)
External interface: 2 USB, 1 MIC, 1 network port, 1 HDMI
Small Windows PC(Optional)
I5 Gen8 CPU, DDR4 8G, M.2(NVME) 128G SSD
Scanner(Optional)
Automatic Barcode Scanner 2100
Resolution: 640*480
Scanning Angle: inclination ±55°, rotation 360°
Decoding Type: 1D code: UPC-A, UPC-E, EAN-13, ISBN10, ISBN13, EAN-8, 39 Code, 128 Code, Cross 25 Code; 2D Code: QR Code
Minimum Resolve: 7mil, 1mil=0.0254mm
Reading Distance: QR:0cm-16cm
IC Card Reader(Not include): Optional
Network:Wired, WIFI, Expandable 4G
Ticketing Printer(Optional)
Ticketing Printer: 300H embedded, Thermal line dot printing,
Cutting Method: full-cutting and half- cutting
Print Speed: > 250MM/S, Dot Density: 203DPI
Effective Printing Width: 72MM, Paper Width: 80 ,
Paper Roll Diameter: maximum 150MM
Standard Features
*Printing mode: Thermal printing, Thermal transfer printing.
*Simple and convenient for Wristbands replacement.
*Standard paper tearing mode.
*Unique energy control of printer head.
Printer specifications
Printer Resolution:203dpi / 8 dots per mm
Print width:
Maximum 2”/ 54mm
Applicable to different styles of Baobi thermal wristband and Baobi thermal transfer wristband
Printing speed:Print speed is selectable.
Standard speed: 2.5 ”/ s (60 mm / sec) (5 seconds per wristband)
Maximum speed: 5 ips (120mm/s)
Medium Characteristics
Maximum wristband/label width:0.39"/10 mm to 2" / 54 mm
Maximum medium roll size:5 ”/ 127 mm (external diameter)
Medium thickness:0.003" / 0.08 mm to 0.0075" / 0.19 mm
Medium type:Thermal/Thermal Transfer Medium
RFID technical parameters
Radio frequency protocol
EPC Global UHF Class 1 Gen 2/ISO 18000-6C
Supports chips：
compatible with the EPC Global UHF
Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3, Monza 4D, Monza 4E, Monza 4QT, Monza 5, Monza R6, Monza R6-P, Monza R6-A,Monza S6-C, UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m, UCODE 7xm,UCODE 7xm+, UCODE 8, UCODE 8m, UCODE DNA, Alien Higgs 3, Alien Higgs 4, Alien Higgs-EC (H5), etc.
Working frequency：920MHz-925MHz
Work status indication：Display
Antenna：Built in
-
