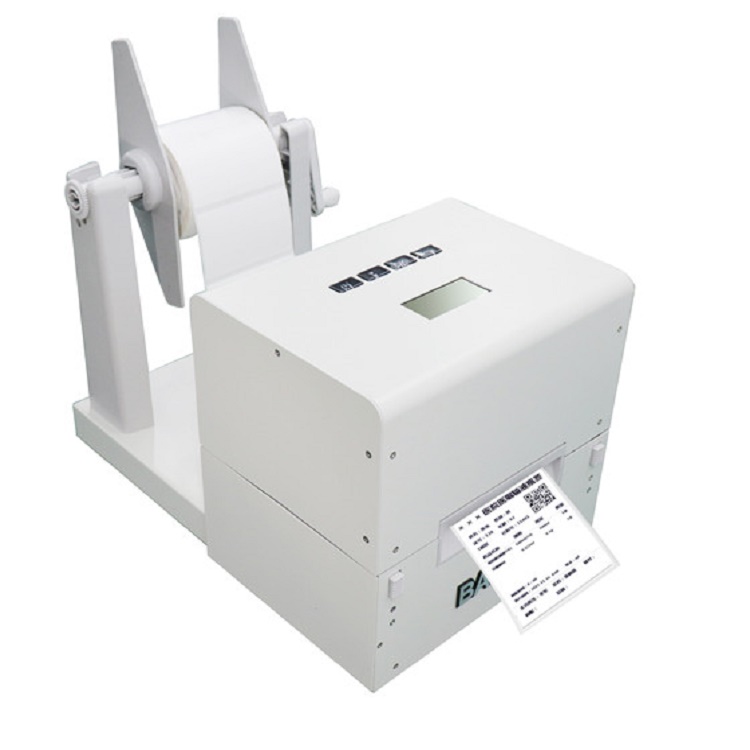

Barcode Label Printer BB710
- Product details
- Specification Parameters
- Product News
BAOBIWANXIANG patented design,support Thermal Printing/Thermal Transfer Printing.
Different printing medium can be chosen upon request.
Large capacity ribbon loading design,support for 300meters ribbon loading.
Widely use in different applications, to provide the most professional barcode printing solutions, meet the needs of various printing requirements.
Suitable for Hospitals, Factories, Offices, Warehouses, Logistics Companies, Online Stores, Shopping Malls and any other applications.
*Printing Mode: Thermal printing,Thermal transfer printing
*Simple and convenient for label replacement
*Equipped with LCD screen, show the print status and print quantity in real time
*Printing Channel is easy to open,easier to fix paper jam
*Unique movable sensor positioning control,flexible consumable compatibility
*Standard paper tearing mode
*Fast and easy ribbon loading design
Printer Resolution:203dpi / 8 dots per mm
Print width:Maximum 4" / 108mm
Print speed is selectable.
Standard speed: 2.5 "/ s (60 mm / sec)
Maximum Printing Width:4"/108 mm
Medium Thickness:0.25mm to 2.0mm
Medium Type:Thermal / Thermal transfer medium
Label Interval:Minimum 3mm gap
Maximum Label Roll Size:13" / 350mm (external diameter)
Medium Type:Black mark or transparent or continuous label
Applicable Ribbon Specifications
Shaft Core: 1.0"
Shaft Length: 110mm
Ribbon Width: within 110mm
Ribbon Roll External Diameter: within 65mm (ribbon length 300m)
Operating Temperature:40℉/4.4℃ to 104℉/40℃
Storage Temperature:-40℉/-40℃ to 140℉/80℃
Operating Humidity:20%-85% non-condensing
Storage Humidity:5%-85% non-condensing
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts) External Power Supply
*Width: 220 mm
*Height: 248 mm
*Length: 333 mm
BAOBI Printer Driver
BPL+ (Baobi printer interface file)
Networking / Connectivity
USB 2.0 interface
RS-232C serial port
Ethernet 10/100 interface RJ45
Wireless 802.11b /g (*Optional)
Fond and Graphic
Support user-defined fonts and graphicsincluding custom logo
Font and Barcode rotation:90,180,270 degrees
Code 39, Code 128A, B&C, UCC/EAN-128,Code 93, Codabar, Interleaved 2 of 5, UPC-A,UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar(formerly RSS), Code 11, China Post
2D barcode:PDF-417, Maxicode, DataMatrix, QR code, Aztec
USB Port Cable
RFID Anti-metal Labels Printer BB710 UHFDifferent from other labels, the anti-metal label is an electronic label encapsulated with a special anti-magnetic wave-absorbing material.
Leading provider of the Internet of Things industry in China,providing personnel and items identification technology, products and total solutions.It’s a high-tech enterprise integrating R&D, production, sales and technical services.Totally obtain 217 patents.
