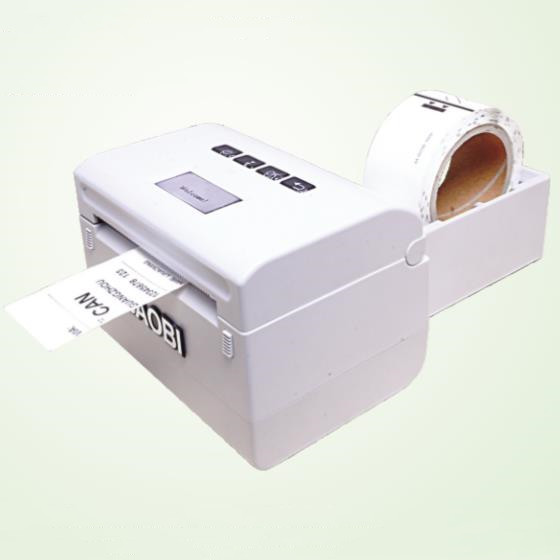

RFID Airline Boarding Passes and Baggage Tag Printer BB700
High Performance, High Stability, Compact Design
RFID Baggage Tag Printer
Designed and made for airlines and airports
Lightweight Shape
Width 140 * Depth177* Height: 143 (mm)
Weight 1.57kg
High-End Performance
Fast printing speed and high stability
Reliable, Durable and Easy to Maintain
Through opening and closing the shell, it is easy to open printer channel and greatly reduces maintenance needs
Data Accuracy
Reduce the check-in process and greatly reduce the baggage error rate
PRINTER SPECIFICATIONS
Resolution： 203 dpi
Print Width :Maximum: 4.25” /108mm ，Minimum: 0.39” / 10mm
Print Speed ：Selectable
Standard Speed:2.5” / 60mm per second
Maximum Speed: 5 ips / 120mm per second
Printing mode ：Direct thermal Printing
Work Status Indicator： Displayed in the screen
RFID TECHNICAL PARAMETERS
RF Protocols
EPC Global UHF Class 1 Gen 2/ISO 18000-6C
Supported Chips
Support the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocols of chips , including Monza 3 , Monza 4D , Monza 4E , Monza 4QT , Monza 5 , Monza R6 , Monza R6-P , Monza R6-A , Monza S6-C , UCODE G2iL , UCODE G2iM , UCODE 7 , UCODE 7m , UCODE 7xm , UCODE 7xm+ , UCODE 8 , UCODE 8m , UCODE DNA , Alien Higgs 3 , Alien Higgs 4 , Alien Higgs-EC(H5) etc.
Work Frequency ：920MHz - 925MHz, 865MHz - 868MHz (optional)
RFID Writing Status ：Special prompt for RFID writing data success or not
Antenna ：Built-in
OPERATING CHARACTERISTICS
Environmental
Maximum Working Power: 60W
Maximum Standby Power: 4.5W
Operating Environment: 5 to 35℃ / 10 to 80% RH Alarm buzzer, altitude 0-5000m
Storage Environment: -20 to 60℃ / 8 to 90% RH
Electrical
Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply
Physical Characteristics
Main Part: Width: 140mm Depth: 177mm Height: 143mm
Bracket: Width: 189mm Depth: 76mm Height: 73mm Weight (N.W): 1.75kg
General Specification
Networking /Connectivity
USB 2.0 interface
RS-232 Serial Interface
Ethernet 10/100 interface (RJ45)
Font and Graphic
Support user-defined fonts and graphics-including custom logo Font and Barcode rotation: 90, 180, 270 degrees
Barcode(IATA Compliant):
1D: Interleaved 2of 5 / Industrial 2of 5 / Code 39 & Code 128 / EAN 13
1D: UPC-A / UPC-E / EAN8 / JAN8 / JAN13 / Codabar(NW-7)/ Code39 / Code93
2D: PDF417 / Aztec / Data Matrix / QR / Windows Driver
Accessories
Warranty Card
USB Port Cable
Power Adapter
Power Cord
-
