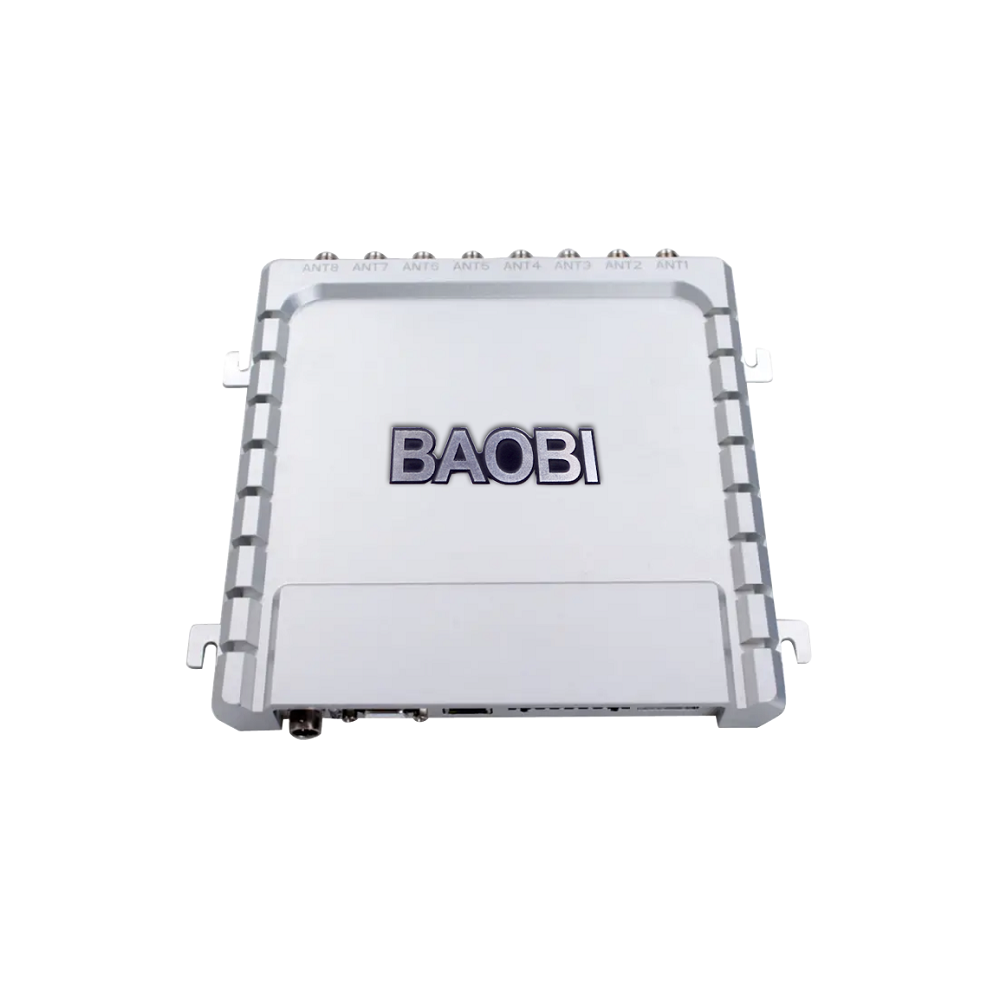

UHF RFID Far Field Reader BR790 EL
- Product details
- Specification Parameters
- Product News
- Download
✔Multi-label recognition algorithm is unique
✔24 hours*365 days of perennial operation does not crash
1. Basic information
[brand] BAOBIWANXIANG
[Model] BR790 EL
[body material] die-cast aluminum alloy
[Input voltage] DC 12V-18V
[Maximum operating current] Average current 600mA +/- 5%@DC 12V Input
[Working temperature] -20 ° C ~ +55 ° C
[Storage temperature] -20 ° C ~ +85 ° C
[Air Interface Protocol] EPC global UHF Class 1 Gen 2/ISO 18000-6C/ISO 18000-6B
[Working Spectrum Range] 860MHz-960MHz
[Receiving sensitivity] <-85dBm
[product size] 230x160x28mm
[weight] 1.8kg
2. Function introduction
RF channel based on Infin R2000 dedicated UHF RFID chip with excellent Impinj performance
Realize 18000-6B/C full protocol function, flexible switching between protocols, enabling simultaneous reading of dual protocol labels
Integrated aluminum alloy body, no need to worry about heat dissipation for a long time running
Technical parameters of BAOBI RFID Reader BR790EL:
Dimensions: 230mm (L) x 160mm (W) x 28mm (H)
Weight: 1.8 Kg
Fuselage Material: Die Cast Aluminum Alloy
Input voltage: DC 12V ~ 18V
Standby Current: <70 mA
Sleep Current: <100uA
Maximum operating current: average current 600 mA +/-5%@ DC 12V Input
Maximum peak current: 1.2A +/-10%@ DC 12V Input
Working temperature: - 20 C ~ + 55 C
Storage temperature: - 20 C ~ + 85 C
Working humidity: < 95% (+25 degree C)
Air Interface Protocol: EPC Global UHF Class 1 Gen 2/ISO 18000-6C/ISO 18000-6B
Working spectrum range: 860MHz-960MHz
Work area support: US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
Mainland and China, Taiwan, Japan, Korea, Malaysia
Output power: 0-33 dBm
Output RF connector: TNC/RP-TNC
Output power accuracy: +/-1dB
Output power flatness: +/-0.2dB
Receiving sensitivity: <-85 dBm
Inventory label peak speed: > 700 sheets per second
Label Buffer: 1000 Labels @ 96 bit EPC
Label RSSI: Support Antenna Connection Protection: Support
Environmental temperature monitoring: support
Working mode: stand-alone/intensive
Communication interface: RS-232 or TCP/IP
GPIO: Two Input Optical Coupling and Two Output Optical Coupling
Maximum communication baud rate: 115 200 BPS
Heat Dissipation: Air Cooling
-
