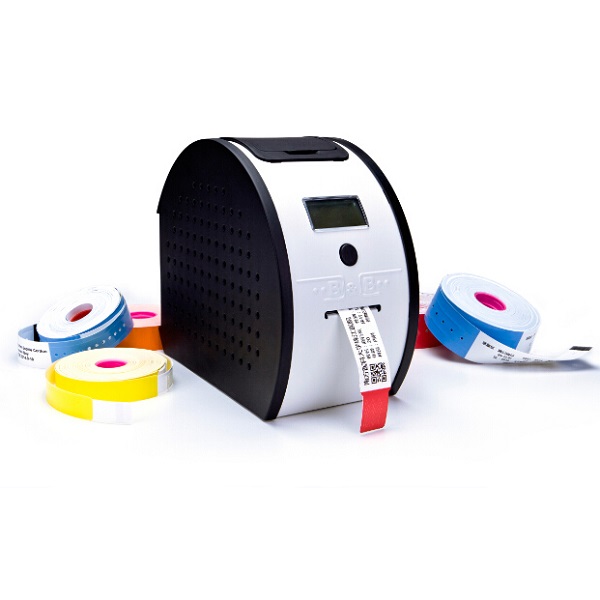

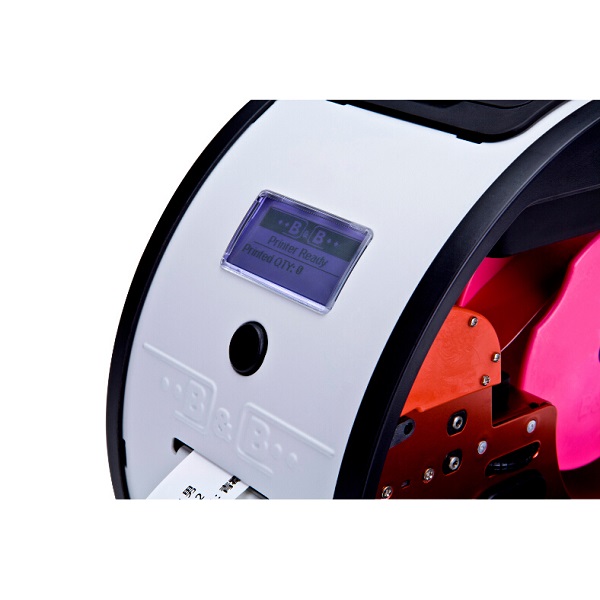

BAOBI Wristband Printer BB777
- BB777 - Designed for small label and wristband printing applications, BB777 can print various specifications of thermal wristband and thermal label with width of 4 cm. It is the best choice for wristband and small label printing. BB777 has a resolution of up to 300 dpi, and supports high-precision printing of one-dimensional and two-dimensional codes.
- Product details
- Specification Parameters
- Product News
BAOBI Specification parameters of BB777 small label and wristband printer
* The printer specifications described in this paper are based on the printer test using the original label wristband of Baobiwanxiang, for users'reference only. The test results will vary depending on the actual application settings or the use of non-Baobiwanxiang brand consumables. Baobiwanxiang has always advocated testing applications.
I. Printer Specifications
Printing resolution: 300 dpi/12 points per millimeter
Standardized B&B Wrist Width of All Different Styles (Maximum 1.8")
0.75"-19 mm 1"/25 mm
Standard printing speed: 2.5 inches/60mm per second (5 seconds per wristband)
Maximum printing speed: 4ips (100mm/s)
Wristband sensor: wristband in, out, and out of balance sensors
II. Operational parameters
Working temperature: 40 /4.4 to 104 /40.
Storage temperature: -40 /-40 -140 /80.
Working humidity: 20%-85% without condensation
Storage humidity: 5%-85% without condensation
External automatic range power supply (in accordance with PFC regulations)
Input: 100-240VAC, 50-60Hz (70Watts)
Width: 125 mm
Height: 213.5 mm
Length: 265.5 mm
III. Working parameters
BAOBI Printer Driver
BBDesigner, the design software of BAOBI Wristband
BPL+ (BAOBI Printer Interface File)
RS-232C Serial Interface
Ethernet 10/100 Interface (RJ45)
Wireless 802.11 b/g (* Optional)
Support user-defined fonts and graphics, including custom logos, etc.
Fonts and barcodes can be rotated as needed: 90 degrees, 180 degrees, 270 degrees
One-dimensional barcodes: Code 39, Code 11, Code 128A, Code 93, UCC/EAN-128, B&C, Codabar, UPC-A, UPC-E, Interleaved 2 of 5, UPC-A with 2 and 5 addons, UPC-E with 2 and 5 addons, Post, EAN 13, EAN 8, EAN 13 with 2 and 5 addons, EAN 8 with 2 and 5 addons, Standard 2 of 5, Industrial 2 of 5, GMARS, MST, Codabat, GS and Barerly (GS), and Barely.
Two-dimensional barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec
IV. Random Accessories
Software Installation CD
The power adapter
Print head cleaning sponge
PP77-C09 (* optional)
PP77-C10 (* optional)
External label bracket WH01 (* optional)
