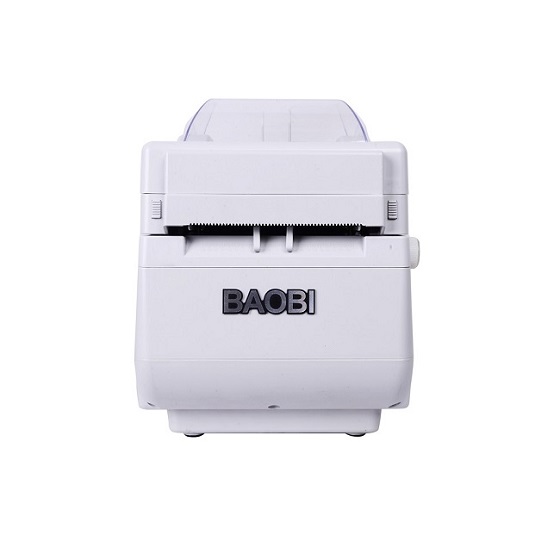

Barcode Label Printer BB707S

Carbon cartridge patent design / dual group and dual channel design / thermal printer / thermal transfer printer / label printer / Wristband printer

[product name] Barcode Label Printer BB707S

[brand] BAOBIWANXIANG

[printing mode] thermal printing, thermal transfer printing

[product introduction] the wristband and label with width less than 108mm can be printed; the selection of consumables is more flexible to meet more printing needs; the unique paper return limit device and standard paper tearing mode are available; various graphs and photos can be printed; the interface file docking system can be used to realize real-time data printing; the user-defined label specifications can be supported to quickly create printing templates

[application field] medical treatment, public service, retail, office, manufacturing, transportation and storage

Product details
Specification Parameters
Product News
Download

Printing Method: Direct Thermal Printing & Thermal Transfer Printing

Two Rolls loading for labels or wristbands with switch button to select printing channel

Functions & Advantages

Direct thermal printing with maximum width of 108mm. 300dpi resolution enables it to print all sorts of one-dimensional barcodes, 2D barcodes and various graphics with high precision.

Two Rolls loading for labels or wristbands with easy switch button for any selection. Patented design of printing path with open buttons makes it easier to fix paper jam.

Printer screen displays in many languages while printer software supports printing different languages also. Baobi Printer Driver supports creating various specifications of consumables, which helps to quickly create new printing templates. Supporting docking with client’s system via BPL interface file, to achieve real-time printing of data.

BAOBIWANXIANG patent designed thermal transfer ribbon box, makes it easy for assembling and removing ribbons.

Adopting LCD Display to show real-time printing status and quantities.

It will improve work efficiency with using Baobi Barcode Verifier to read barcode.

Application

（1）Medical

Patient Identification / Infant Anti-theft System / Sample Tracking / Drug Management / Medical Instrument Management

（2）Public Server Management

Event Ticket / Water Park / Amusement Park / Concert / Cruise / Hotel Ticket / Wristband Printing

（3）Retail

Store Merchandise Tag / Linear Label Printing

（4）Manufacturing / Logistics

Cargo Tracking / Container Label / Product Label Printing / Warehousing Identification

（5）Enterprise Office

Assets Management / File Consolidation / Company Logo Identification

Barcode Label Printer BB707S SPECIFICATION PARAMETER

FEATURES

Printing method: Direct Thermal Printing & Thermal Transfer Printing

BAOBIWANXIANG patent designed thermal transfer ribbon box, makes it easy for assembling and removing ribbons

Two Rolls design, easy to switch printing material

More easier and faster to set

Equipped with multiple languages

Adopting LCD Display to show real-time printing status and quantities.

Label printing software supports the printing of different language texts

Standard tear paper mode

Unique energy control of printer head

PRINTER SPECIFICATIONS

Resolution

300 dpi/12 dots per mm

Print Width

Maximum: 4.25” /108mm

Minimum: 0.39” / 10mm

Print Speed

Selectable

Standard Speed: 2.5” /60mm per second

Maximum Speed: 5 ips/120mm per second

Printing mode

Direct thermal Printing, Thermal Transfer Printing

Two Rolls

Upper Roll/ Down Roll, selectable

Applicable thermal printing ribbons specification

Shaft core: 0.5 inch

Length of shaft: 108mm

Width of thermal transfer ribbon: < 108mm

Outer diameter of thermal transfer ribbon roll: < 36mm

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Width: 225mm

Height: 306mm

Depth: 345mm

Weight (N.W): 3.66kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface

Wireless 802.11 b/g/n (Optional)

Font and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Power Cord

BAOBI Label Holder WH01 (Optional)

BAOBI Ribbon Shaft BRS01 (Optional)

Barcode Lable Printer BB707S Operation Steps

Barcode Lable Printer BB707S Operation Steps
