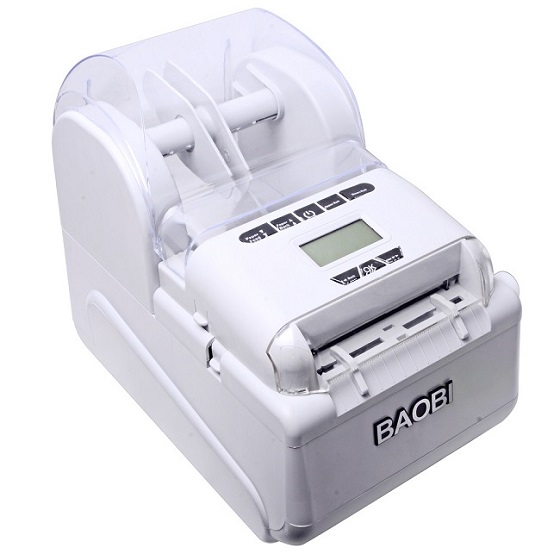

RFID Label Printer BB787S HF

[product name] RFID Label Printer BB787S HF

[brand] BAOBIWANXIANG

[printing mode] thermal printing (no consumables required)

[product introduction] it can print wristbands and labels with a width of less than 108mm; it is designed with two groups and two channels, and press the key to quickly switch the printing channels; three setting modes are optional: printing at the same time, RFID writing only, RFID writing only.

[application fields] manufacturing, logistics, retail, medical treatment, anti-counterfeiting safety, asset management, transportation, food, books, animals, agriculture, electric power management, electronic payment, environmental monitoring, smart home, services for the benefit of the people, public health, green ecology

Product details
Specification Parameters
Product News
Download

Printing method: Direct Thermal Printing

Three setting modes: Only , Write Only , Print and Write RFID

Print data and write data simultaneously

Special prompt for RFID writing data success or not

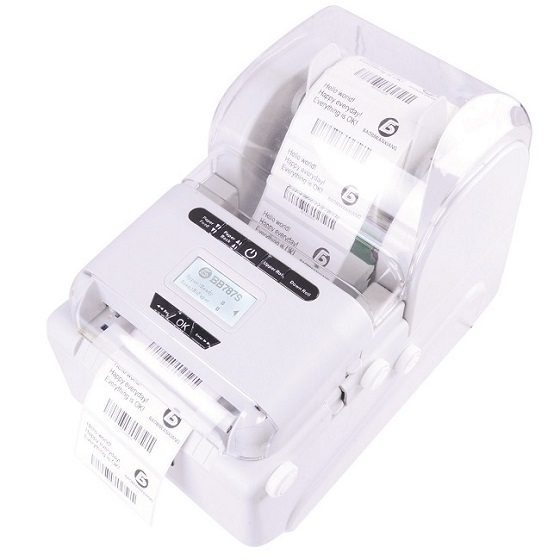

Two Rolls loading for labels or wristbands with switch button to select printing channel

Providing professional barcode printing as well as the solutions of Internet of Things technology

Functions & Advantages

Direct thermal printing with maximum width of 108mm. 300dpi resolution enables it to print all sorts of linear barcodes, 2D barcodes and various graphics with high precision.

Three setting modes: Print Only, write RFID Only, Print and Write RFID. Special prompt for RFID writing data success or not. Supports the ISO/IEC 14443 Type A, NFC Forum TAG Type 1, 2, 3 and 4

Two Rolls loading for labels or wristbands with switch button to select printing channel.

Patented design, printing path with open buttons makes it easier to fix paper jam.

Printer screen displays in many languages and printer software supports printing different languages. Baobi Printer Driver supports creating various specifications of consumables, which helps to quickly create new printing templates. Supporting docking with client’s system via BPL interface file, to achieve real-time printing of data.

Adopting LCD Display to show real-time printing status and quantities.

It will improve work efficiency by using BAOBI Barcode Verifier to read barcode, and will increase security of Internet of Things by using BAOBI RFID Reader.

Application

Public Transportation, Access Management, Electronic toll Collection, Car Parking, School and Campus Cards, Employee Cards, Internet Cafes, Loyalty, Event Ticketing, Voucher and Coupons, Product Authentication, Electronic Shelf Labels

RFID Label Printer BB787S HF SPECIFICATION PARAMETER

PRINTER SPECIFICATIONS

Resolution：300 dpi/12 dots per mm

Print Width

Maximum: 4.25"/108mm

Minimum: 0.39"/10mm

Print Speed

Selectable,

Standard Speed: 2.5"/60mm per second

Maximum Speed: 5 ips/120mm per second

Printing mode：Thermal printing

Two Rolls：Upper Roll/Down Roll, selectable.

RFID TECHNICAL PARAMETERS

RF Protocols

ISO/IEC 14443 Type A, NFC Forum TAG Type 1，2，3 and 4

Supported Chips

Mifare 1K S50, Mifare 4K S70, FM11RF08, Mifare Ultralight EV1(MF0UL11), Mifare Ultralight EV1(MF0UL21), NTAG213, NTAG215, NTAG216.

Work Frequency

13.56MHz

Work Status Indicator

Displayed in the screen

Antenna

Built-in

OPERATING CHARACTERISTICS

Environmental

Operating temperature: 40℉/4.4℃ to 104℉/40℃

Storage temperature: -40℉/-40℃ to 140 ℉/80℃

Operating humidity: 20%-85% non-condensing

Storage humidity: 5%-85% non-condensing

Electrical

Universal power supply (PFC compliant) 100-240VAC, 50-60Hz (60 Watts) External Power Supply

Physical Characteristics

Width: 225mm

Height: 306mm

Depth: 345mm

Weight (N.W): 3.32kg

BAOBI PRINTABLE ID SOLUTION

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Application Programming Interface)

Networking /Connectivity

USB 2.0 interface

Ethernet 10/100 interface (RJ45)

Wireless 802.11 b/g /n(Optional)

Font and Graphic

Support user-defined fonts and graphics-including customized logo

Font and Barcode rotation: 90, 180, 270 degrees

Barcode

Linear Barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E with 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5, LOGMARS, MSI, Codabar and GS1 Databar (formerly RSS), Code 11, China Post.

2-Dimensional Barcode: PDF-417, Maxicode, Data Matrix, QR code, Aztec.

Accessories

Software CD Disk (BBDesigner / BAOBI Printer Driver)

Warranty Card

USB Port Cable

Power Adapter

Power Cord

BAOBI Label Holder WH01 (Optional)
