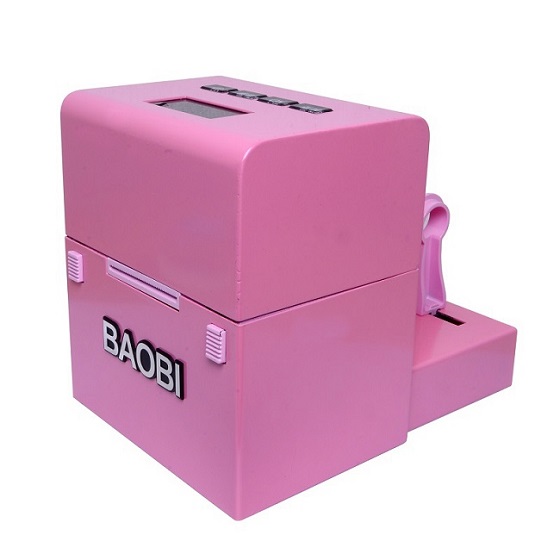

RFID Wristband Printer BB720A HF

SPECIFICATION PARAMETER

The printer specifications described based on printer testing are using the our own wristbands ,for the user's reference only.Test results depend on the actual application settings or the use of other kind consumables. BAOBIWANXIANG has always advocated testing to verify the application.

I.Standard Features

Printing mode: Thermal printing,Thermal transfer printing

Three setting modes: Print and Write RFID, Print Only, Write RFID only

Fast and easy ribbon loading design

Simple and convenient for label replacement

Equipped with LCD screen, show the print status and print quantity in real time.

Printing path with open buttons makes it easier to fix paper jam.

Standard paper tearing mode

Unique energy control of printer head.

II.Printer specifications

Printer Resolution:203dpi / 8 dots per mm

Print width:Maximum 2” / 54mm

Applicable to different styles of Baobi thermal wristband and Baobi thermal transfer wristband

Printing speed:

Print speed is selectable.

Standard speed: 2.5 ”/ s (60 mm / sec)(5 seconds per wristband)

Maximum speed: 5 ips (120mm/s)

III.Medium Characteristics

Maximum wristband/label width:

0.39"/10 mm to 2" / 54 mm

Maximum medium roll size:

5 ”/ 127 mm (external diameter)

Medium thickness:

0.003" / 0.08 mm to 0.0075" / 0.19 mm

Medium type:

Thermal/Thermal Transfer

IV.Applicable ribbon specifications

RFID technical parameters

Operating Characteristic

Shaft core: 0.5 ”

Shaft length: 56mm

Ribbon width: within 54mm

Ribbon roll external diameter: 36mm or less(ribbon length 90m)

V.RFID technical parameters

Radio frequency protocol

ISO14443A、ISO14443B、ISO15693、ISO18092 ECMA-340

Supports chips

ISO14443A

MIFARE Classic EV1, MIFARE Classic,MIFARE Mini,MIFARE DESFire EV1, MIFARE DESFire EV2,MIFARE Pro X,MIFARE Smart MX,MIFATE Ultralight,MIFARE Ultralight C, MIFARE Ultralight EV1, NTAG2xx, PayPass,LEGIC Advant,SLE44R35,SLE66Rxx, etc.

ISO14443B

Calypso,CEPAS,HID iCLASS,Moneo,Pico Pass, etc.

IS015693

ICODE SLI, ICODE SLIX, EM4x33, Em4x35, Tag-it, HID iCLASS, HID iCLASS SE/SR, ,SRF55Vxx, etc.

ISO18092 ECMA-340

NFC Peer-to-Peer,Sony FeliCa,NFC Tag, etc.

Working frequency

13.56MHz

Work status indication

Display

Antenna

Built in

VI.Operating Characteristic

Environmental

Operating temperature:40 F/4.4 c to 104F/40 C

Storage temperature:-40 F/-40 C to 140 F/80C

Operating humidity:20%-85% non-condensing

Storage humidity:5%-85% non-condensing

Electrical

Universal power supply(PFC compliant)

100-240VAC, 50-60Hz (60Watts) External

Power Supply

Physical specification

Width: 148 mm

Height: 175 mm

Length: 203 mm

Weight(N.W): 2.5kg

VII.Working Parameters

Software

BAOBI Printer Driver

BBDesigner

Programming

BPL+ (Baobi printer interface file)

Networking / Connectivity

USB2.0

Serial port RS232

Wireless802.11b/g/n(Optional)

Fond and Graphic

Support user-defined fonts and graphics-including custom logo

Font and Barcode rotation:90,180,270 degrees

Barcode

1D barcode:

Code 39, Code 128A, B&C, UCC/EAN-128,Code 93, Codabar, Interleaved 2 of 5, UPC-A,UPC-E, UPC-A with 2 and 5 add on, UPC-E

With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on, Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar(formerly RSS), Code 11, China Post

2D barcode:

PDF-417, Maxicode, DataMatrix, QR code, Aztec

Accessories

Warranty Card
USB Port Cable
Power Adaptor
Power Cord
