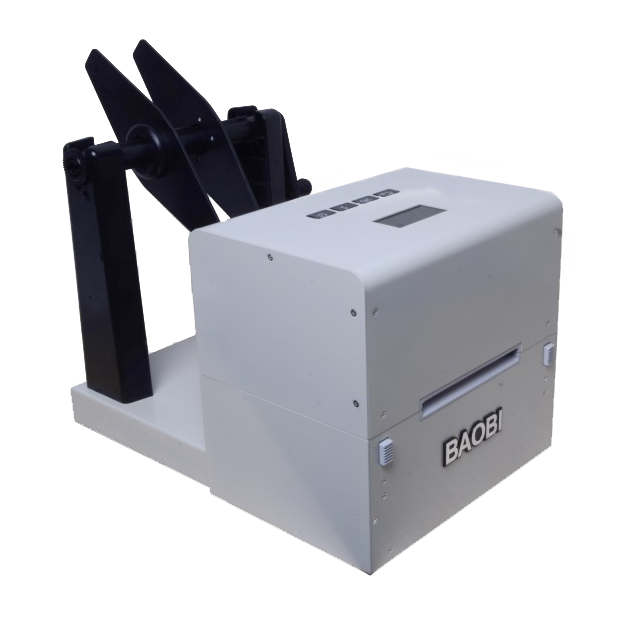

BAOBI RFID PRINTER BB710D
- Product details
- Specification Parameters
- Product News
BAOBI patented design, unique flexible anti-metal label printing and RFID writing;
Easy to operate, convenient for anti-metal label applications;
Excellent printing and writing RFID data simultaneously performance, data information is more secure
Unique RFID writing success tips / fail reminder.
Precise positioning, support printing and RFID writing on label with minimun antenna gap of 3mm;
One-button operation printing and simultaneously RFID writing,efficient and convenient;
Large-capacity ribbon loading design, support ribbon roll the ribbon length of 300m.
RFID printing technology base on Internet of Things is widely used.It can be used in many fields such as anti-counterfeiting security, transportation, food, library, animals, agriculture, power management,electronic payment, environmental monitoring, smart home, convenience service, public health, and green ecology.
BB710D Printer Specifications
* Print mode:direct thermal printing ,thermal transfer printing
* Three setting modes: print and write RFID,print only, write RFID only
* Precise positioning, can operate the printing and RFID writing on Label with minimun antenna gap of 3mm
* Fast and easy ribbon loading design
* Simple and convenient for label replacement
* Equipped with LCD screen, show the print status and print quantity in real time.
* Printing channel can be easily opened,quickly clearing paper jams, etc.
* Special removable sensor positioning control, flexible consumable compatibility
* Unique energy control of printer head
203dpi / 8 dots per mm
Maximum 4" / 108mm
Print speed is selectable.
Standard Speed: 2.5 " / s (60mm / sec)
4" / 108mm
0.25 mm to 2.0mm
Thermal / Thermal Transfer Medium /
Flexible Anti-metal tag
Minimum space of 3mm
Shaft core: 1.0"
Shaft length: 110mm
Ribbon width: within 110mm
Ribbon length: within 300m
RFID Technical Parameters
EPC Global UHF Class 1 Gen 2/ISO 18000-6C
Supports chips compatible with the EPC Global UHF Class 1 Gen 2/ISO 18000-6C protocol, including Monza 3,Monza 4D, Monza 4E, Monza 4QT,Monza 5, Monza R6, Monza R6-P,Monza R6-A,Monza S6-C, UCODE G2iL,UCODE G2iM, UCODE 7, UCODE 7m,
UCODE 7xm,UCODE 7xm+, UCODE 8,UCODE 8m, UCODE DNA, Alien Higgs 3,Alien Higgs 4, Alien Higgs-EC (H5), etc.
920MHz-925MHz (other frequencies are optional before leaving the factory)
Work Status Indication
Displayed in the screen
40 F/4.4 c to 104F/40 C
-40 F/-40 C to 140 F/80C
Universal power supply(PFC compliant)
100-240VAC, 50-60Hz (60Watts)
External Power Supply
* Height: 248mm
* Weight(N.W): 4.5kg
*BAOBI Printer Driver
*BPL+ (BAOBI printer interface file)
Networking / Connectivity
*RS-232C serial interface
*Ethernet 10/100 interface (RJ45)
*Wireless 802.11 b/g (* optional)
Fond and Graphic
Support user-defined fonts and graphics-including custom logo
Font and Barcode rotation:90,180,270 degrees
*1D barcode: Code 39, Code 128A, B&C, UCC/EAN-128, Code 93, Codabar, Interleaved 2 of 5,UPC-A, UPC-E, UPC-A with 2 and 5 add on, UPC-E With 2 and 5 add on, EAN 13, EAN 8, EAN 13 with 2 and 5 add on, EAN 8 with 2 and 5 add on,Postnet, Standard 2 of 5, Industrial 2 of 5,LOGMARS, MSI, Codabar and GS1 DataBar (formerly RSS), Code 11, China Post
*2D barcode: PDF-417, Maxicode, DataMatrix,QR code, Aztec
USB Port Cable
Leading provider of the Internet of Things industry in China,providing personnel and items identification technology, products and total solutions.It’s a high-tech enterprise integrating R&D, production, sales and technical services.Totally obtain 217 patents.
