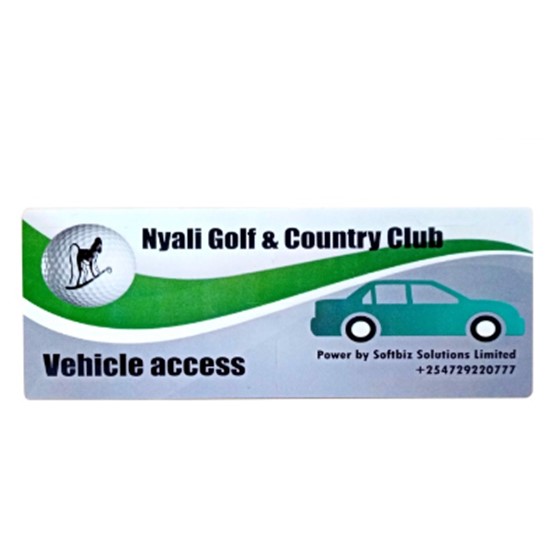

RFID Windshield Label BLA2300 is a high-performance passive electronic label, which supports ISO18000-6C (EPCglobal C1G2) standard. It is suitable for vehicle windshield and is used for vehicle entry and exit, barrier-free access for vehicles, and high-speed Road toll collection, parking lot access and access control and other fields.

BLA2300 series is covered with waterproof membrane, can be printed or printed, can print or print variable barcode or serial data information. The available frequency range of the tag covers the frequency range of 840MHz ~ 960MHz. The tag chip contains an automatic tuning mechanism (this function makes the electronic tag more stable in common environments) and has excellent environmental adaptability.

The electronic tag has efficient reading and writing efficiency, contains an anti-collision mechanism, and has good performance in reading and storage. Typical applications include vehicle entry and exit, parking lot and toll station management, electronic vehicle registration, automatic vehicle identification, etc.

product features

Support EPCglobal C1G2 and ISO/IEC 18000-6C protocol

Can be printed on both sides, can print or print variable information

Excellent anti-interference ability, providing higher reading reliability

Excellent high read and write sensitivity

Product specifications

Model: BLA2302-11040-UHF01-07-9319

Antenna size 93mm*19mm

Label surface material: coated paper

Label size: 110*40*0.2mm

Model: BLA2301-10050-UHF01-07-9319

Antenna size 93mm*19mm

Label face material: white PET

Label size: 100*50*0.2mm

Packaging Information

Packing: 500pcs/roll, 3" roll core

Unwinding direction: chip facing down

Note: Do not violently knock out or bend the chip
