RFID Library Label BLA1200
Book automation management and borrowing
1. Features
Simplify the lending process
Precise inventory
Querying books and identifying books and documents faster
High level of anti-theft, not easy to damage
2. Performance parameters
Surface substrate: coated paper
Roll out method: package, chip down
Note: Do not violently knock out, bend the chip
Packing: 500 / roll
Working mode: readable and writable
Number of reading and writing: 100,000 times
Chip life: ≥10 years
Working environment: -20 ° C to 70 ° C
Working humidity: 20% to 80%
Storage environment: -5°C to 40°C
Data valid period: 100,000 times, data storage for 50 years
Finished product shelf life: in the case of 5 ° C to 40 ° C, protected from light, not sealed, can be stored for ten years
Technical parameters of BAOBI RFID Library Label BLA1200
I. BLA1200 Series
Model: BLA1202-HF18-01

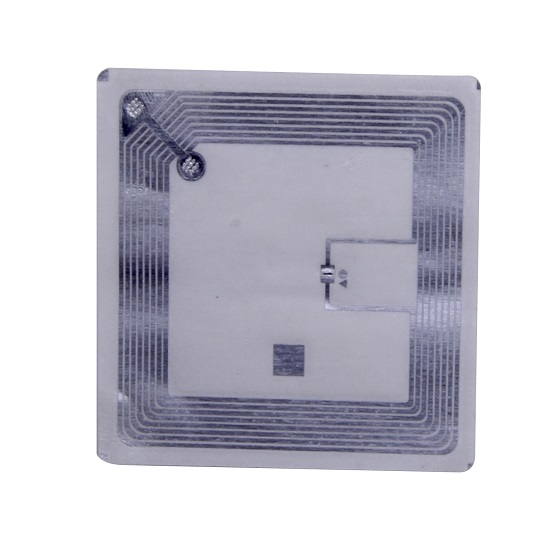

Antenna size 46mm*46mm
Die Cutting Dimension: 50mm*50mm
Chip: I CODE SLIX
Frequency: 13.56 MHz
Agreement: ISO/IEC 15693
Capacity: 1024 bit
Reading Distance: > 300mm
Security: Unique Unrewritable Sequence Number (UID) for identification and encryption; EAS and AFI are used as security signs against theft
Model: BLA1201-UHF01-01
Die Cutting Dimension 97mm*5mm
Chip: Alien Higgs3
Frequency: 860-960MHZ
Protocol: EPC Gen2 and ISO/IEC18000-6C standards
Capacity: 96 bits in user area
II. Electronic Performance
Work Mode: Readable and Writable
Read and write: 100,000 times
Chip life: > 10 years
III. COMPREHENSIVE PERFORMANCE
Working environment: - 20 C to 70 C
Working humidity: 20% to 80%.
Storage environment: - 5 40 C
Data validity period: 100,000 times, data preservation for 50 years
The shelf life of finished products: under the condition of 5 to 40 C, it is light-proof, unsealed and can be stored for ten years.
IV. Packaging
Surface Substrate: Copper Plate Paper
Release mode: roll-up, chip down
Notes: No violent bumping, bending chips
Packing: 500 rolls
-
