BAOBIWANXIANG Economic Access Control Tripod Turnstile Gate
- Product details
- Specification Parameters
- Product News

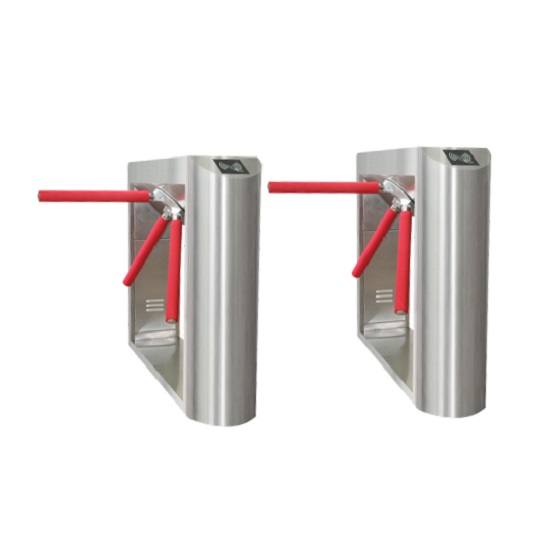

Bridge Circular Arc Tripod Turnstile Gate(Single Core) B-GZ02A
Highlight LED blinking direction indication
Automatic Homing Function:Gates automatically return to the hindered zero position after the pass process.
Power-off Function:When the power is cut off,the system will automatically open the gate,which is convenient for evacuating people,meet the requirements of fire protection
Anti-illegal Intrusion Function: When the card is invalid, no card swiping or no traffic is allowed, the forced entry channel will be regarded as illegal intrusion, the system will automatically alarm and close the wing gate.
Anti-backward Function: Pedestrians enter the pass from the opposite direction before the end of the pass process will be treated as a reverse intrusion and the system will automatically alarm and close the wing gate.
Anti-tailing Function: Photoelectric switch detects pedestrian traffic conditions and detects trailing phenomenon (the person behind sticks to the person in front, and try to pass without swiping card ). The system will automatically alarm and close the gate.
Intelligent Linkage Alarm: Including illegal intrusion, anti-reverse traffic and other alarms,can be equip with other alarm monitoring equipment, in the form of sound and light. If requires a flash alarm, it needs to add a illuminated alarm to the housing.
Hospitals, scenic spots, government sectors, customs inspections, financial institutions, office buildings, hotels , scientific research center,industries, amusement park, entertainment places.
Counting and alarm functions
Housing material is mainly made of 304 stainless steel with a thickness of 1.26mm. Other materials can also be customized
Remote control switch
Dynamic face recognition all-in-one machine
Able to add the emergency escape function, use remote control switch to open the gate under emergency situation
Fingerprint identification for attendance machine
QR code for pass identification
Product Size: 1200*280*990mm
Packing Size (mm): 1220*310*1000
Power Supply Voltage: 220VAC±10%/15%, 50HZ±4%;
Power: 30-40W DC24V;
Drive Mode: Brush motor mode;
Working Temperature: -25 ° C ~ +75 ° C;
Technical Indicators: Anti-trailing
Open/Close Time: ≈ 0.8 seconds;
Control Signal: Switch signal
Average Number of Failures-free: 3 million times
Relative Temperature:5%-90% non-condensing
Waterproof and Dustproof Level: Above IP32 ;
Leading provider of the Internet of Things industry in China,providing personnel and items identification technology, products and total solutions.It’s a high-tech enterprise integrating R&D, production, sales and technical services.Totally obtain 217 patents.
