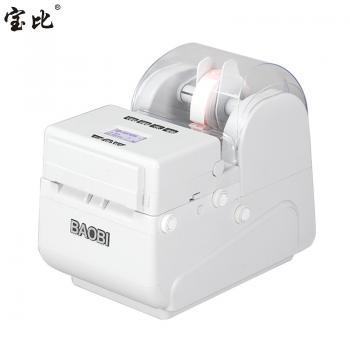

BAOBI RFID Printer BB707S UHF
- Two printing modes: heat sensitive mode and heat transfer mode: print only, write only RFID, print at the same time write unique RFID writing success/failure reminder dual-channel design, keys quickly switch print channel double-roll label/wristband placement.
- Product details
- Specification Parameters
- Product News
* The printer specifications described in this paper are based on the printer test using the original label wristband of Baobiwanxiang, for users'reference only. The test results will vary depending on the actual application settings or the use of non-Baobiwanxiang brand consumables. Baobiwanxiang has always advocated testing applications.
I. Standard Characteristics
Printing Method: Thermosensitive/Thermal Transfer Printing
Double Channel Design for Fast Switching of Printing Media
Label Volume Placement and Replacement Simple and Fast
Multilingual Label Printing Software
Configuration of LCD screen to display printing status and quantity in real time
Support printing of text in different languages
Standard paper tearing mode
Special Print Head Energy Control
II. Printer Specifications
Printing resolution: 300 dpi/12 points per millimeter
Maximum width: 4.25 inches/108 mm
Minimum width: 0.39 inches/10mm
Printing speed is optional.
Standard printing speed: 0.47 inches per second (12 millimeters per second) (15 seconds per wristband, 3 seconds per tag)
Maximum print speed: 2.5 IPS (60 mm/s)
Printing Mode: Thermal Printing, Thermal Transfer Printing
Printing paper passage: upper passage and lower passage are optional; seamless switching
Label scroll: upper scroll, lower scroll
Specification of Carbon Strip Used
Shaft core: 0.5 inches
Axis Length: 108 mm
Carbon bandwidth: less than 108 mm
Carbon tape outer diameter: less than 36 mm
III. RFID technical parameters
Radio Frequency Protocol
EPC Global UHF Class 1 Gen 2/ISO 18000-6C
Chips supporting compatcompatcompatible EPC Global UHF Class 1Gen 2/ISO 18000-6C protocol include Monza 3, Monza 4D, Monza 4D, Monza 4E, Monza 4Q, Monza 5, Monza R6, Monza R6, Monza R6-P Monza R6-P, Monza R6-A, Monza S6-C, UCODE G2iL, UCODE G2iL, UCODE G2iM, UCODE 7, UCODE 7m, UCODE 7xm, UCODE 7xm, UCODE 7xm, UCODE 7xm +, UCODE +, UCODE 8, UCODE 8m, UCODE, AlieODE, Aln AlAlAln 3, Alien AlAlAlAlAlAliegs, Algs-EC(H5)etc.
920MHz - 925MHz
Working status indication
IV. Operating parameters
Working temperature: 40 /4.4 to 104 /40.
Storage temperature: -40 /-40 -140 /80.
Working humidity: 20% - 85% without condensation
Storage humidity: 5% - 85% without condensation
External automatic range power supply (in accordance with PFC regulations)
Input: 100-240VAC, 50-60Hz (60Watts)
Width: 225 mm
Height: 306 mm
Length: 345 mm
Weight: 4.0 kg (net weight)
V. Working parameters
BAOBI Printer Driver Printer Driver Printer Driver Driver
BBDesigner BAOBI Printing Design Software
BPL+ (BAOBI Printer Interface File)
Ethernet 10/100 Interface (RJ45)
Wireless 802.11b/g (* Optional)
Support user-defined fonts and graphics, including custom logos, etc.
Fonts and barcodes can be rotated as needed: 90 degrees, 180 degrees, 270 degrees.
One-dimensional barcode: Code 39, Code 128A, B&C, UC-C/EAN-128, Code 93, Codabar, Interleaved 2 of 5, UPC-A, UPC-E, UPC-A with 2 and 5 addons, UPC-E with 2 and 5 addons, EAN 13, EAN 8, EAN 13 with 2 and 5 addons, EAN 8 with 2 and 5 addons, EAN 8 with 2 and 5 addons, Postnet, Standard 2 of 5, Industrial 2 of 5, GMARS, MSI, Codabar, Interleaved 2 of 5, UPC-A with 2 and 5 addons, UPC-E with 2 and 5 addons, UPC-E with 2 and 5 addons, EAN-E with 2 and 5 addons, EAN-8 De 11, China Post
Two-dimensional barcode: PDF-417, Maxicode, DataMa-trix, QR code, Aztec
VI. Random Accessories
The power adapter
External label bracket WH01 (optional)
BAOBI Carbon Belt Matching Shaft BRS01 (optional)
